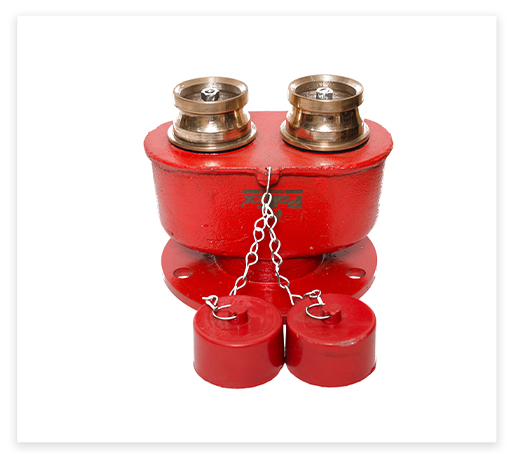

The PALEX Fire Brigade Connection – Two Way is a critical firefighting system component designed to allow fire brigade personnel to supplement water supply to fire hydrant, wet riser, sprinkler, and firefighting systems during emergencies. The unit provides two inlet connections that enable fire service vehicles to pump water directly into the building's fire protection network.
Manufactured from high-quality corrosion-resistant materials, the Two Way Fire Brigade Connection ensures reliable performance, rapid water transfer, and compatibility with standard firefighting equipment. It is widely installed in commercial complexes, residential high-rise buildings, industrial facilities, hospitals, hotels, airports, and public infrastructure projects to improve emergency firefighting capabilities.
Speak to our fire safety expert to learn more about this product.
| Parameter | Details |
|---|---|
| Manufacturer | Palladium Safety Solutions Pvt. Ltd. |
| Brand | PALEX |
| Product Type | Fire Brigade Connection |
| Configuration | Two Way |
| Application | Fire Protection Water Supply Systems |
| Parameter | Details |
|---|---|
| Number of Inlets | 2 |
| Inlet Connection | 63 mm Instantaneous Female Inlet |
| Outlet Connection | 100 mm Flanged Outlet |
| Body Material | Gun Metal / Stainless Steel |
| Non-Return Valve | Provided |
| Blank Cap & Chain | Provided |
| Working Pressure | 16 kg/cm² |
| Hydraulic Test Pressure | 24 kg/cm² |
| Surface Finish | Polished Finish |
The Fire Brigade Connection is manufactured using:
This construction ensures long-term operational reliability.
The two inlet ports provide:
The built-in NRV offers:
Supplied with:
| Parameter | Details |
|---|---|
| Water Supply Capacity | High |
| Working Pressure | 16 kg/cm² |
| Hydrostatic Test Pressure | 24 kg/cm² |
| Corrosion Resistance | Excellent |
| Operational Reliability | High |
| Service Life | Long-Term Use |
The Fire Brigade Connection enables:
Provides:
Supports:
| Parameter | Details |
|---|---|
| Warranty Period | 12 Months |
| Coverage | Manufacturing Defects |
| Material Defects | Covered |
| Workmanship | Covered |
Palladium Safety Solutions Pvt. Ltd.
ISO 9001:2015 Certified Company
| Parameter | Details |
|---|---|
| Configuration | Two Way (2 Inlets) |
| Inlet | 63 mm Instantaneous Female (–2) |
| Outlet | 100 mm Flanged |
| Body Material | Gun Metal / Stainless Steel |
| Non-Return Valve | Provided |
| Blank Cap & Chain | Provided |
| Working Pressure | 16 kg/cm– |
| Hydraulic Test Pressure | 24 kg/cm– |
| Warranty | 12 Months (Manufacturing Defects) |
Drag to pan · Scroll or pinch to zoom · +/- buttons · Arrow keys to move
Could not display this PDF in the browser.
A Fire Brigade Connection (FBC) is a firefighting system component that allows fire service personnel to pump water into a building's fire protection system during emergencies.
It allows two fire hoses or fire brigade pumping lines to supply water simultaneously into the fire protection network.
It provides additional water supply when the building's internal fire water source is insufficient during firefighting operations.
The connection is available in:
The NRV prevents reverse water flow and protects the fire protection system.
Yes. Protective blank caps with chains are supplied as standard.
Yes. It is specifically designed for exterior building installation.
Common locations include:
Yes. It is commonly used with wet riser systems.
Yes. Fire Brigade Connections are often connected to sprinkler systems for emergency water supply support.
Yes. Both Gun Metal and Stainless Steel versions provide excellent corrosion resistance.
It allows increased water supply capacity and faster emergency response.
Yes. It is specifically designed for fire brigade use during emergencies.
Routine maintenance includes:
Yes. Flow, pressure, and leak testing should be conducted periodically.
Common sectors include:
It provides an external emergency water supply source that supports firefighting operations.
The warranty covers:
Because it offers:
