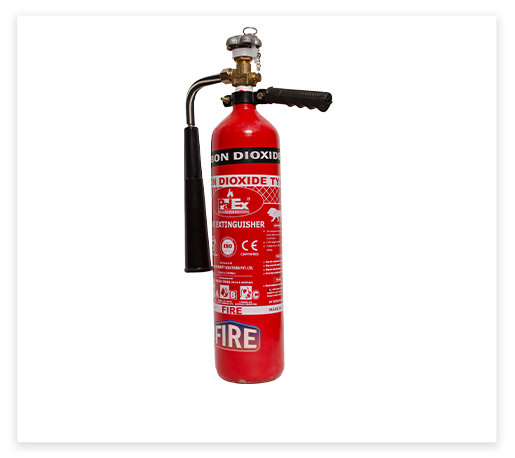

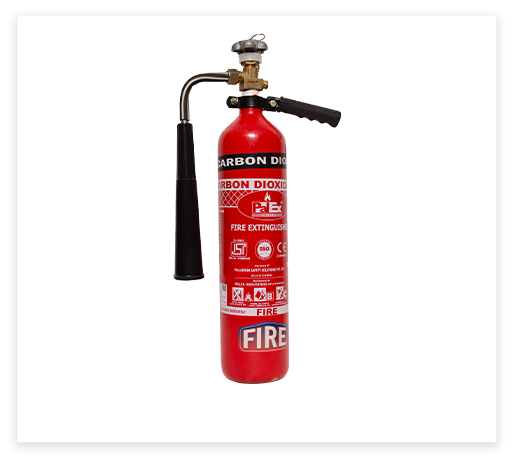

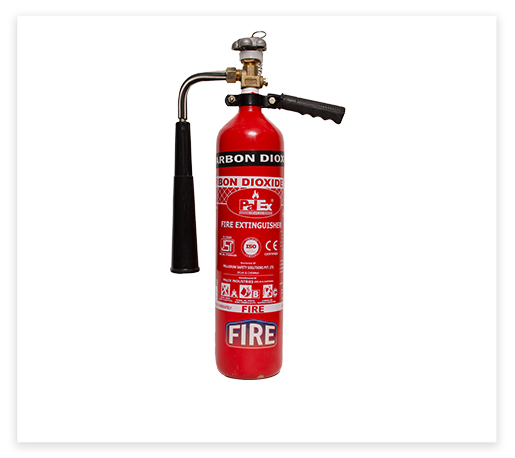

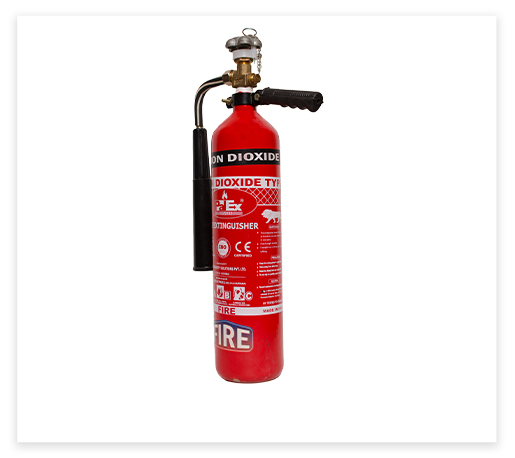

The Carbon Di Oxide (CO₂) Fire Extinguisher – 2 KG is a lightweight and portable fire suppression device designed for combating Class B, Class C, and electrically started fires. Charged with 2 KG (±5%) Carbon Dioxide gas, this extinguisher is highly effective against flammable liquid fires and electrical equipment fires without leaving any residue after discharge.
Manufactured according to IS 7285 requirements, the seamless steel cylinder bodies are PESO approved, ensuring maximum safety and reliability. The extinguisher is particularly suitable for offices, server rooms, electrical panels, laboratories, data centers, and commercial facilities where clean fire suppression is essential.
Speak to our fire safety expert to learn more about this product.
| Parameter | Details |
|---|---|
| Manufacturer | Palladium Safety Solutions Pvt. Ltd. |
| Trade Mark / Brand | PALEX |
| BIS Standard Code | IS 15683:2018 |
| Type | Portable Fire Extinguisher – High Pressure Type |
| Specification | Details |
|---|---|
| Capacity | 2 KG |
| Fire Rating | 21B |
| Applicable Fire Classes | Class B, Class C & Electrically Started Fires |
| Minimum Effective Discharge Time | 8 Seconds |
| Actual Discharge Time | Approx. 9 Seconds |
| Minimum Bulk Range of Discharge | 2 Meters |
| Actual Discharge Range | Approx. 2 Meters |
| Minimum Percentage of Discharge | 95% |
| Actual Percentage of Discharge | Approx. 98% |
| Working Temperature | -10°C to +60°C |
| Service Pressure | 65–70 BAR |
| Fill Density | Not to Exceed 0.667 |
The CO₂ Fire Extinguisher – 2 KG provides rapid suppression of flammable liquid and electrical fires through high-pressure carbon dioxide discharge. With a fire rating of 21B, discharge efficiency of approximately 98%, and operating pressure between 65 and 70 BAR, the extinguisher ensures effective fire control while preventing damage to sensitive electronic equipment.
| Component | Details |
|---|---|
| Body | Seamless Manganese Steel (ISI Marked, Conforming to IS 7285) |
| Extinguishing Media | CO₂ Gas (Purity as per IS 15222–99.5%) |
| Valve | Brass Wheel Type (IS 3224) |
| Discharge Horn | Polyethylene (Non-Conductor of Electricity) |
| Syphon Tube | Aluminium |
| Wall Mounting Bracket | Mild Steel, Powder Coated |
Manufactured using seamless manganese steel cylinders and high-purity carbon dioxide gas, the extinguisher delivers reliable and residue-free firefighting performance. The non-conductive polyethylene discharge horn enhances operator safety during electrical fire emergencies, while the brass valve ensures dependable operation and long service life.
| Test | Details |
|---|---|
| Hydro Pressure Test | 250 BAR |
| Burst Test for Discharge Horn | Not Less Than 275 BAR |
| Leakage Test | Inverted Glass Jar / Soap Solution Method |
| Partial Discharge Test | Second pressure or weight not less than 75% of first discharge after interruption |
Each CO₂ extinguisher undergoes rigorous pressure and leakage testing to ensure safety and reliability. These tests verify cylinder integrity, horn strength, and discharge performance under high-pressure operating conditions.
| Specification | Details |
|---|---|
| Diameter | 110 mm ± 5 mm |
| Height | 570 mm ± 10 mm |
| Cylinder Thickness | Approx. 4 mm |
| Gross Weight | 8.1 KG ±2% |
The extinguisher's compact dimensions and lightweight design make it easy to handle, transport, and mount in locations requiring immediate access to fire protection equipment.
| Specification | Details |
|---|---|
| Paint Type | Durable Enamel Paint |
| Colour | PO Red (Shade No. 538 as per IS:5) |
The durable enamel coating protects the cylinder from environmental wear while maintaining high visibility for emergency identification and access.
| Specification | Details |
|---|---|
| Inspection & Testing | As per Approved QAP |
| Finish | PO Red as per IS:5 (Shade 538) |
| Marking | As per IS 15683:2018 |
| Approvals | BIS (Bureau of Indian Standards) |
| Maintenance & Refilling | As per IS 2190 |
The extinguisher is BIS-approved and manufactured according to national fire safety standards. Maintenance and refilling procedures follow IS 2190 requirements to ensure continued performance and regulatory compliance.
| Specification | Details |
|---|---|
| Packing Type | Corrugated Boxes or Suitable Jute Bag |
| Item | Quantity |
|---|---|
| Wall Mounting Bracket | 1 No. |
| Fire Extinguisher | 1 No. |
| Specification | Details |
|---|---|
| Capacity | 2 KG CO₂ |
| Fire Rating | 21B |
| Fire Classes | B, C & electrical |
| Service Pressure | 65–70 BAR |
| Discharge Time | ~9 seconds |
| Discharge Range | ~2 m |
| Cylinder | Seamless manganese steel (IS 7285) |
| CO₂ Purity | 99.5% (IS 15222) |
| Hydro Test | 250 BAR |
| Gross Weight | 8.1 kg ±2% |
| Dimensions | 110×570 mm (dia × H) |
| Approvals | BIS, PESO cylinder |
| Standard | IS 15683:2018 |
Drag to pan · Scroll or pinch to zoom · +/- buttons · Arrow keys to move
Could not display this PDF in the browser.
A CO₂ Fire Extinguisher is a fire suppression device that uses carbon dioxide gas to extinguish fires by displacing oxygen and cooling the fire source.
It is suitable for Class B fires, Class C fires, and electrically started fires.
Yes, CO₂ is non-conductive and ideal for electrical equipment fires.
No, CO₂ extinguishers leave no residue after discharge.
The cylinder is made from seamless manganese steel conforming to IS 7285.
A brass wheel-type valve conforming to IS 3224 is used.
Yes, the polyethylene horn is non-conductive.
Yes, one wall mounting bracket is included.
They are commonly installed in offices, server rooms, laboratories, electrical rooms, data centers, and control panels.
Because it leaves no residue and does not damage sensitive electronics.
Clean extinguishing, no residue, electrical safety, fast discharge, and effective suppression of flammable liquid fires.
It offers portable, residue-free fire protection for offices, electrical installations, and sensitive equipment environments.
