What is a Four-Way Fire Brigade Connection?

A Four-Way Fire Brigade Connection is a pumping-in breech that allows fire service personnel to pump water from external sources into a building–s dry riser, wet riser, or sprinkler system during firefighting operations.

What is the purpose of a Fire Brigade Connection?

The Fire Brigade Connection provides firefighters with a dedicated inlet point to supply water from fire tenders into a building–s firefighting system when additional water pressure or supply is required.

What systems can this Fire Brigade Connection be connected to?

It can be connected to:Dry riser systemsWet riser systemsSprinkler systems

How many inlets does the PALEX Four-Way Fire Brigade Connection have?

The unit features four 63 mm male instantaneous inlets, allowing multiple hose connections simultaneously.

What is a pumping-in breech?

A pumping-in breech is a firefighting device that enables fire brigade vehicles to inject water into a building–s internal fire protection piping network.

What material is used for the body of the Fire Brigade Connection?

The body and flange are manufactured from Cast Iron conforming to IS 210.

What material are the inlet adaptors made from?

The male instantaneous adaptors are manufactured from Gun Metal conforming to IS 318 LTB-2.

Does the Fire Brigade Connection include Non-Return Valves (NRVs)?

Yes. The four inlets are equipped with NRVs (Non-Return Valves) to prevent reverse water flow.

What is the working pressure of the unit?

The Fire Brigade Connection is designed for a working pressure of 7 kgf/cm–.

What hydrostatic pressure test is performed on the product?

The unit is hydrostatically tested at 21 kgf/cm– for 2.5 minutes.

What is the outlet size of the Fire Brigade Connection?

The unit features a 150 mm flanged outlet for connection to riser or sprinkler systems.

What is the approximate weight of the Four-Way Fire Brigade Connection?

The approximate weight ranges between 16 kg and 18 kg.

Where is a Four-Way Fire Brigade Connection commonly installed?

Common installation locations include:High-rise buildingsShopping mallsHospitalsHotelsIndustrial facilitiesAirportsCommercial complexes

Why are multiple inlets provided?

Multiple inlets allow:Increased water flow ratesSimultaneous hose connectionsImproved firefighting efficiency during emergencies

What colour is the Fire Brigade Connection?

The body is finished in Fire Red paint, while the gun metal adaptors are polished.

How long is the warranty period?

The PALEX Four-Way Fire Brigade Connection carries a 12-month warranty from the date of supply.

Why is a Fire Brigade Connection important in fire protection systems?

A Fire Brigade Connection:Enables external water supply during emergenciesSupports firefighting operations in high-rise buildingsImproves water availability to risers and sprinklersEnhances overall fire safety and regulatory compliance

PALEX Four-Way Fire Brigade Connection | Palladium Safety Solutions

The PALEX Four-Way Fire Brigade Connection, also known as a Pumping-In Breech, is designed to enable fire service personnel to supply water from external sources directly into a building–s fire protection system during emergencies.

The unit allows fire tenders to pump water into dry riser systems, wet riser systems, and sprinkler systems.

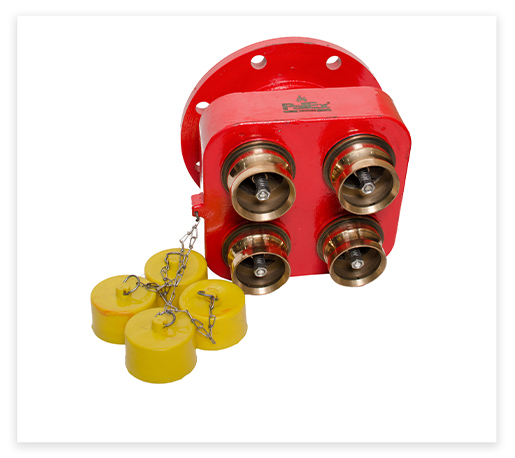

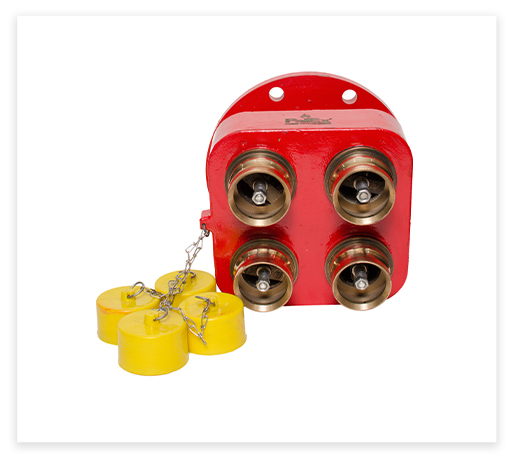

Constructed with a durable cast iron body, the Fire Brigade Connection features four 63 mm gun metal male instantaneous inlets with Non-Return Valves (NRVs) and a 150 mm flanged outlet for efficient and reliable water delivery to the fire protection network.

It serves as a critical component in high-rise buildings, industrial facilities, commercial complexes, and other properties equipped with riser systems.

Speak to our fire safety expert to learn more about this product.

Request a Call-back

Description Specifications Technical Sheet FAQ

Product Description

1. General Data

Parameter	Details
Manufacturer	Palladium Safety Solutions Pvt. Ltd.
Trade Mark / Brand	"PALEX"
Product Type	Fire Brigade Connection – Four Way

2. Material of Construction

Component	Specification
Body / Flange	Cast Iron, IS 210
Male Adaptor	Gun Metal, IS 318 LTB-2
Inlet Caps	Rubber
Seat Washer	Rubber, IS 937

3. Quality Tests

Test	Specification
Dimensional Check	As per Approved Quality Assurance Plan (QAP)
Hydrostatic Pressure Test	21 kgf/cm² for 2.5 Minutes

4. Technical Data

Parameter	Details
Working Pressure	7 kgf/cm²
Inlet Size	63 mm
Number of Inlets	4
Outlet Connection	150 mm Flanged Outlet
Approximate Weight	16–18 kg

5. Finish

Component	Finish
Body	Fire Red Painted Finish
Male Adaptors	Well Polished Gun Metal Finish

6. Approvals & Marking

Parameter	Details
Approvals	Not Specified
Product Marking	PALEX (Brand Name)

7. Warranty & Guarantee

Parameter	Details
Warranty Period	12 Months from Date of Supply

8. Packing

Parameter	Details
Box Type	Corrugated Box

9. In-Box Accessories

Item	Quantity
Four-Way Fire Brigade Connection	1 No.

Key Benefits

Emergency Water Supply Integration

Allows fire tenders to supply water directly into riser systems.
Supports firefighting operations during emergencies.
Enhances building fire protection capabilities.

Four-Way Inlet Configuration

Four 63 mm instantaneous inlets.
Enables higher water flow rates.
Supports multiple hose connections simultaneously.

Durable Construction

Heavy-duty cast iron body.
Robust flange construction.
Suitable for demanding fire protection environments.

Reliable Water Flow Control

Equipped with Non-Return Valves (NRVs).
Prevents reverse water flow.
Improves operational safety and efficiency.

Corrosion-Resistant Components

Gun metal male adaptors.
Fire red protective coating.
Long service life in outdoor installations.

Easy System Integration

150 mm flanged outlet connection.
Compatible with dry riser, wet riser, and sprinkler systems.

Applications

High-Rise Buildings

Residential towers
Commercial skyscrapers
Mixed-use developments

Commercial Facilities

Shopping malls
Office complexes
Hotels
Convention centres

Industrial Facilities

Manufacturing plants
Warehouses
Processing facilities

Institutional Buildings

Hospitals
Universities
Government buildings
Educational institutions

Infrastructure Projects

Airports
Metro stations
Transportation hubs

Fire Protection Systems

Dry riser systems
Wet riser systems
Sprinkler installations

Technical Data

Parameter	Details
Working Pressure	7 kgf/cm–
Inlet Size	63 mm
Number of Inlets	4
Outlet Connection	150 mm Flanged Outlet
Approximate Weight	16–18 kg
Hydrostatic Test	21 kgf/cm– for 2.5 Minutes
Body Material	Cast Iron, IS 210
Adaptor Material	Gun Metal, IS 318 LTB-2
Warranty	12 Months from Date of Supply
