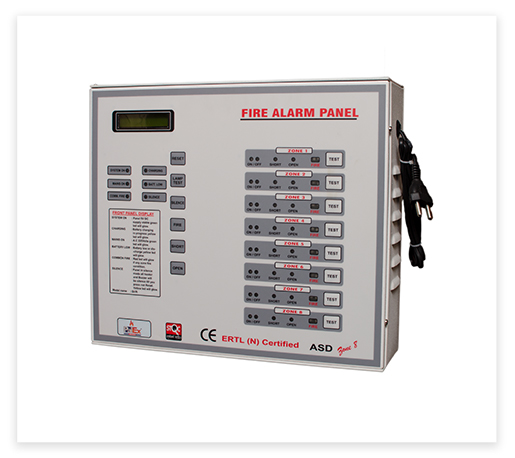

The PALEX Fire Alarm Panel – 8 Zone is a microcontroller-based conventional fire alarm control panel designed to provide reliable fire detection, monitoring, and alarm management across eight independent fire detection zones. The panel continuously supervises connected fire safety devices and provides real-time information through a 16×2 LCD display and dedicated LED status indicators.
Designed for medium to large commercial buildings, industrial facilities, educational institutions, hospitals, hotels, and residential complexes, the panel supports smoke detectors, heat detectors, manual call points (MCPs), hooters, and other conventional fire alarm devices. With zone isolation capability, battery charging support, relay outputs, and advanced fault monitoring, the panel delivers dependable fire protection and operational reliability.
Speak to our fire safety expert to learn more about this product.
| Parameter | Details |
|---|---|
| Manufacturer | Palladium Safety Solutions Pvt. Ltd. |
| Brand | PALEX |
| Product Type | Fire Alarm Panel |
| Model | 8 Zone |
| Product Code | PSS-08Z |
| Approval | CE |
| Parameter | Details |
|---|---|
| Mains Voltage | 220V AC |
| Frequency | 50 Hz |
| Power Consumption | 60 Watt (Fire Condition) |
| Operating Voltage | 24V DC |
| Detection Output | 24V DC |
| Hooter Output Supply | 24V DC |
| Number of Relays | 11 |
| Parameter | Details |
|---|---|
| Number of Zones | 8 |
| Normal Operating Voltage | 16–24V DC |
| Maximum Zone Resistance | 220 Ohms |
| End of Line Resistor | 4k7 Ohm, One Per Zone |
| Standby Current | 200 mA |
| Parameter | Details |
|---|---|
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | 5% to 95% RH (Non-Condensing) |
| Parameter | Details |
|---|---|
| Cabinet Material | 1.8 mm CRCA Sheet |
| Surface Finish | Powder Coated |
| Colour | Caramel White |
| Dimensions | 272 mm × 346 mm × 96 mm |
| Compliance | CE Approved |
Manufactured using:
Features:
The panel includes:
Provides indication for:
Supports:
Compatible with:
Eight zones enable monitoring of larger facilities with greater accuracy.
Zone-wise indications help locate alarm events quickly.
Integrated diagnostics simplify troubleshooting.
Battery backup support ensures uninterrupted protection.
Suitable for growing commercial and industrial facilities.
| Parameter | Details |
|---|---|
| Warranty Period | 12 Months |
| Coverage | Manufacturing Defects |
| Electrical Components | Covered |
| Workmanship | Covered |
Supports larger buildings and facilities.
Provides intelligent fire monitoring and control.
Improves visibility and fault identification.
Maintains system operation during power failures.
Built to recognized quality and safety standards.
| Parameter | Details |
|---|---|
| Product Code | PSS-08Z |
| Zones | 8 |
| Approval | CE Approved |
| Mains | 220V AC, 50 Hz |
| Operating Voltage | 24V DC |
| Power (Fire) | 60 Watt |
| Relays | 11 |
| Max Zone Resistance | 220 Ohms |
| EOL Resistor | 4k7 per zone |
| Dimensions | 272 mm × 346 mm × 96 mm |
| Warranty | 12 Months (Manufacturing Defects) |
Drag to pan · Scroll or pinch to zoom · +/- buttons · Arrow keys to move
Could not display this PDF in the browser.
An 8 Zone Fire Alarm Panel is a conventional fire alarm control unit that monitors eight independent fire detection circuits.
Yes. It uses advanced microcontroller technology for system monitoring and control.
Yes. Open circuit faults are continuously monitored.
Yes. Short circuit monitoring is available on all zones.
Yes. Individual zone isolation is provided.
Yes. Fire and fault relay outputs are included.
Compatible devices include:
Yes. It supports both common and zone-wise hooter activation.
Yes. Trickle and fast battery charging facilities are included.
Yes. The panel carries CE approval.
Common applications include:
Manufacturing defects, workmanship issues, and electrical component failures.
Because it offers:
