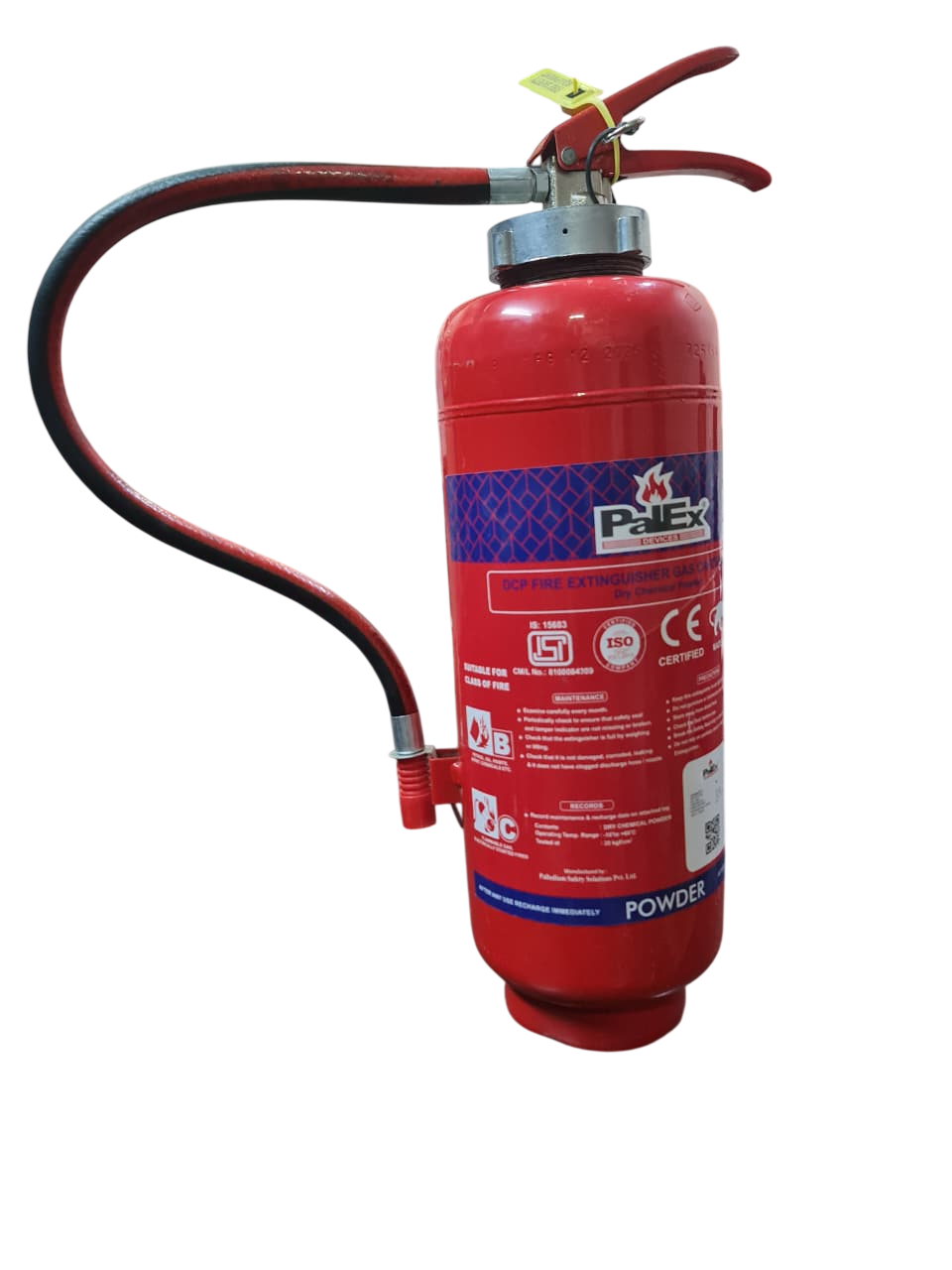

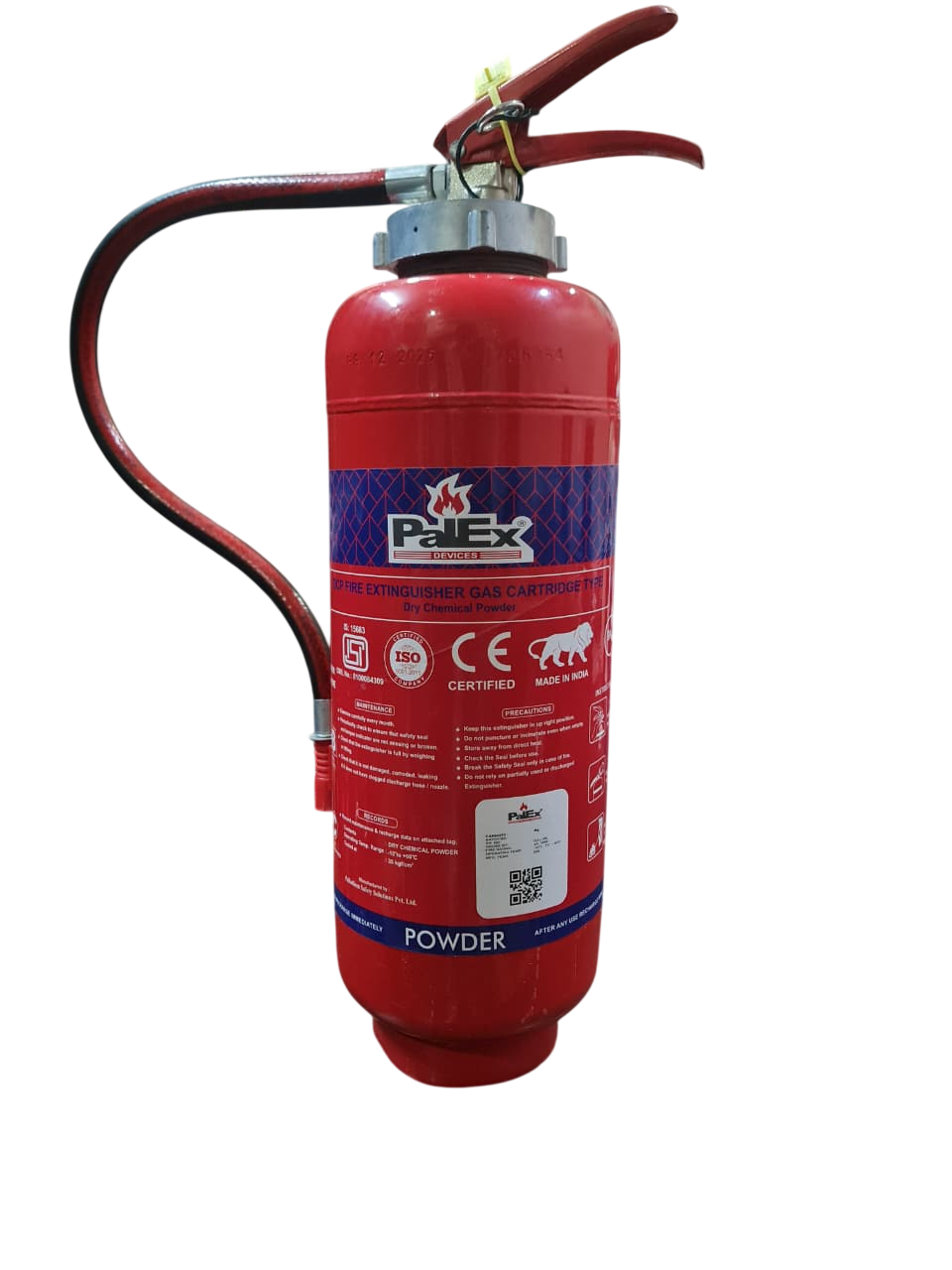

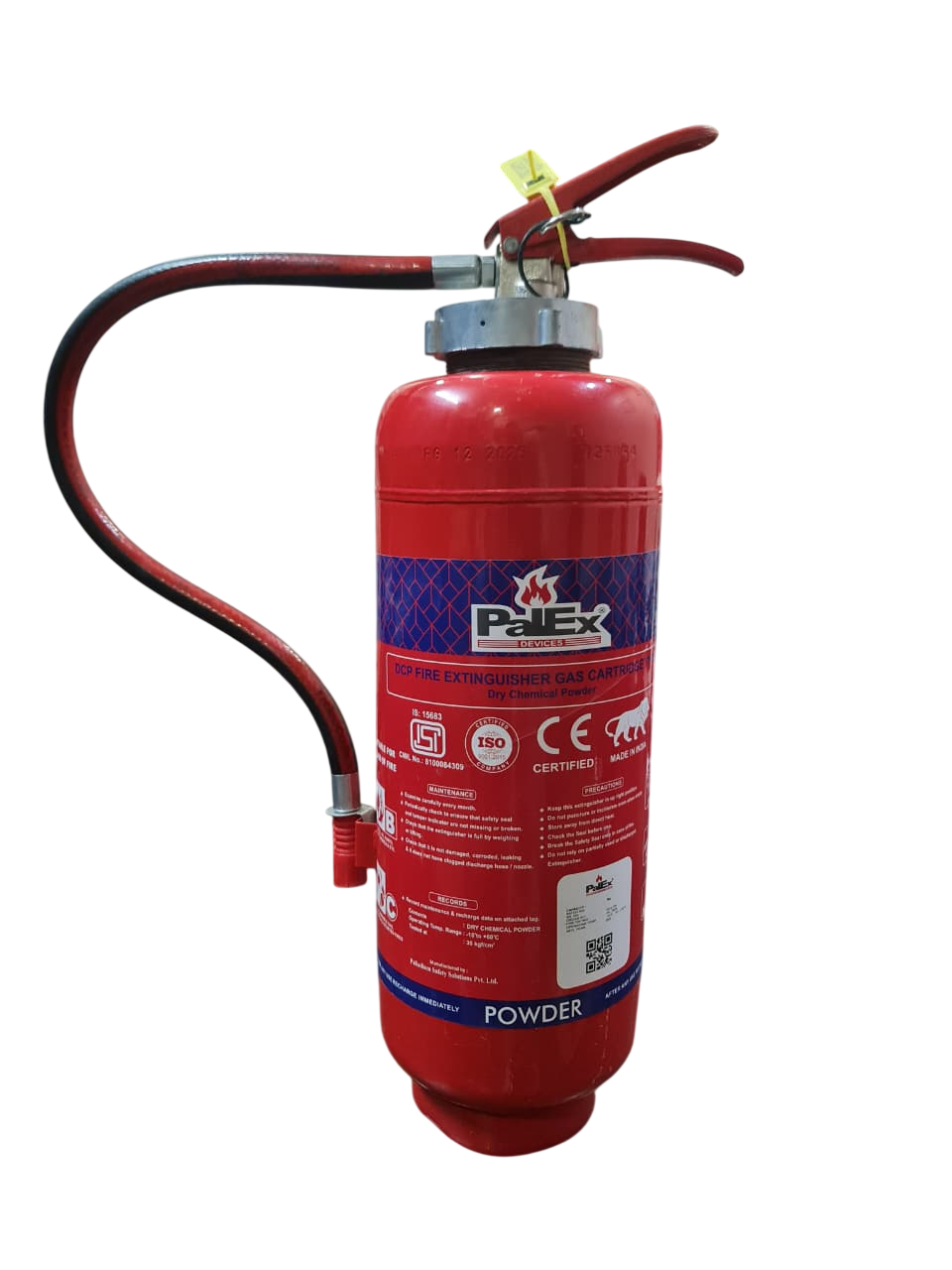

BC Dry Chemical Powder (Cartridge Operated) Fire Extinguisher – 6 kg with Mild Steel (MS) body and 120 g CO₂ gas cartridge (IS 4947). Suitable for Class B, C, and electrically started fires.
Speak to our fire safety expert to learn more about this product.
BC (Cartridge Operated) Fire Extinguisher suitable for Class B, C, and electrically started fires.
Lightweight, durable, and compliant with safety standards. BC type Fire Extinguisher with a nominal charge of 6 kg (±2%), fitted with a 120 g CO₂ Gas Cartridge conforming to IS 4947. Constructed of MS Sheet by MIG welding process with a discharge valve.
| Parameter | Specification |
|---|---|
| Manufacturer | Palladium Safety Solutions Pvt. Ltd. |
| Trade Mark / Brand | PALEX |
| BIS Standard Code | IS 15683:2018 |
| Type | Portable Fire Extinguisher (Gas Cartridge Type) |
| Parameter | Specification |
|---|---|
| Capacity | 6 KG |
| Fire Rating | 89B (Class B – Liquid Fuel) |
| Effective Discharge Time | Minimum: 13 sec. (Actual: Approx. 15 sec.) |
| Bulk Range of Discharge | Minimum: 2 m (Actual: Approx. 3.5 m) |
| Percentage of Discharge | Minimum: 85% (Actual: Approx. 95%) |
| Working Temperature | -30°C to +60°C |
| Service Pressure | 15 BAR |
| Hydraulic Test Pressure | 35 BAR |
| Component | Material |
|---|---|
| Body | MS Sheet (Low Carbon Welded Sheet having max. 0.25% C, 0.05% P and 0.05% S as per IS 513) |
| Extinguishing Media | Sodium / Potassium Bicarbonate (≥75%) conforming to IS 4308:2019 |
| Neck Ring | MS Pipe (Filling Dia – 64 mm) |
| Valve | Steel Make, Squeeze Grip Type |
| Syphon Tube | ABS / Aluminium |
| Hose Pipe | PVC Braided (500 mm ± 10 mm) |
| Gas Cartridge | 120 g CO₂ Gas Cartridge as per IS 4947 |
| Discharge Nozzle | PVC |
| Bottom Dome | PVC / Plastic |
| Test | Specification |
|---|---|
| Hydro Pressure Test (Pt) | 35 bar (3.5 MPa), Hold for 1 minute |
| Minimum Burst Pressure (Pb) | 55 bar (5.5 MPa), Hold for 1 minute |
| Leakage Test | Inverted Glass Jar / Soap Solution |
| Partial Discharge | The second pressure or weight shall not be less than 75% of the first after interruption of discharge |
| Parameter | Specification |
|---|---|
| Diameter | 146 mm ± 2 mm |
| Height | 455 mm ± 2 mm |
| Height with Bottom Dome | 470 mm ± 2 mm |
| Thickness | 1.2 mm Thick Sheet |
| Full / Gross Weight | 8.5 KG ± 2% (Approx.) |
The extinguisher undergoes a 7-tank anti-corrosion process, followed by an epoxy powder coating with a minimum thickness of 50 microns.
| Parameter | Specification |
|---|---|
| Inspection & Testing | As per approved QAP |
| Finish | PO Red as per IS:5 (Shade 538) |
| Marking | As per IS 15683:2018 |
| Approvals | BIS (Bureau of Indian Standards) |
| Maintenance, Care & Refilling | As per IS 2190 |
| Parameter | Specification |
|---|---|
| Box Type | Corrugated Boxes |
| Box Dimensions | 175 mm × 175 mm × 520 mm |
| Item | Quantity |
|---|---|
| Wall Mounting Bracket | 1 No. |
| Fire Extinguisher | 1 No. (Fully Assembled) |
| Parameter | Specification |
|---|---|
| Capacity | 6 KG |
| Type | Gas Cartridge Operated |
| Gas Cartridge | 120 g CO₂ (IS 4947) |
| Fire Rating | 89B (Class B – Liquid Fuel) |
| Effective Discharge Time | Minimum: 13 sec. (Actual: Approx. 15 sec.) |
| Bulk Range of Discharge | Minimum: 2 m (Actual: Approx. 3.5 m) |
| Percentage of Discharge | Minimum: 85% (Actual: Approx. 95%) |
| Working Temperature | -30°C to +60°C |
| Service Pressure | 15 BAR |
| Hydraulic Test Pressure | 35 BAR |
| Body Material | Mild Steel (MS) Sheet — MIG welded (1.2 mm) |
| Extinguishing Media | Sodium / Potassium Bicarbonate (IS 4308:2019) |
| Hose Pipe | PVC Braided (500 mm ± 10 mm) |
| Full / Gross Weight | 8.5 KG ± 2% (Approx.) |
Drag to pan · Scroll or pinch to zoom · +/- buttons · Arrow keys to move
Could not display this PDF in the browser.
It is suitable for Class B (liquid fuel), Class C (gaseous fires), and electrically started fires.
The extinguisher is a gas cartridge type unit fitted with a 120 g CO₂ gas cartridge conforming to IS 4947. The cartridge provides expellant pressure when activated, discharging the BC dry powder through the squeeze-grip valve and PVC braided hose.
The fire rating is 89B, with an effective discharge time of approximately 15 seconds, throw range of approximately 3.5 metres, and discharge efficiency of about 95%.
The body is constructed from MS Sheet (low carbon welded sheet as per IS 513) by the MIG welding process with 1.2 mm thickness, an MS pipe neck ring (64 mm filling diameter), 7-tank anti-corrosion treatment, and epoxy powder coating (minimum 50 microns).
Each unit includes 1 fully assembled fire extinguisher and 1 wall mounting bracket, packed in a corrugated box (175 mm × 175 mm × 520 mm).
