What is a 50KG ABC Dry Chemical Powder Wheeled Fire Extinguisher?

A 50KG ABC Dry Chemical Powder Wheeled Fire Extinguisher is a high-capacity trolley-mounted extinguisher designed to suppress Class A, Class B, Class C, and electrically initiated fires using Mono Ammonium Phosphate dry powder.

What types of fires can the PALEX 50KG ABC Fire Extinguisher extinguish?

The extinguisher is suitable for:Class A fires (wood, paper, cloth, plastics)Class B fires (flammable liquids)Class C fires (flammable gases)Electrical fires involving energized equipment

What is the fire rating of the PALEX 50KG ABC Fire Extinguisher?

The extinguisher has a 20A, 233B fire rating, making it suitable for large industrial fire risks and flammable liquid hazards.

What is an outer cartridge fire extinguisher?

An outer cartridge extinguisher uses a separate CO₂ gas cartridge mounted externally to pressurize the extinguishing agent during operation.

Why is a CO₂ cartridge used in this extinguisher?

The 2KG CO₂ cartridge provides rapid pressurization and ensures efficient discharge of the ABC powder over long distances.

How long does the extinguisher discharge for?

The actual discharge duration is approximately 75 seconds, providing extended firefighting capability.

What is the discharge range of the extinguisher?

The extinguisher provides an effective discharge range of approximately 7 meters.

Is the 50KG ABC extinguisher suitable for industrial facilities?

Yes. It is specifically designed for:Manufacturing plantsWarehousesFuel depotsRefineriesPetrochemical facilitiesLogistics hubs

Can this extinguisher be used on electrical fires?

Yes. ABC dry powder is non-conductive and suitable for electrically initiated fires.

What extinguishing agent is used in the extinguisher?

The extinguisher contains Mono Ammonium Phosphate (MAP) Dry Chemical Powder, conforming to IS 4308:2019.

Is the extinguisher BIS approved?

Yes. The extinguisher complies with IS 16018:2012 and carries BIS approval.

What is the operating temperature range?

The extinguisher operates effectively between -30°C and +55°C, making it suitable for both extreme cold and hot environments.

What is the total weight of the extinguisher?

The approximate gross weight is 84–86 kg, including the trolley assembly and extinguishing media.

Why is the extinguisher trolley-mounted?

The trolley-mounted design enables easy transportation and deployment of a large-capacity extinguisher in industrial and outdoor environments.

What industries commonly use 50KG ABC trolley-mounted extinguishers?

Common applications include:Oil & gas facilitiesPetrochemical plantsWarehousesManufacturing plantsAirportsUtility installationsLogistics centres

How often should a 50KG ABC fire extinguisher be serviced?

Inspection, maintenance, and refilling should be carried out according to IS 16018:2012 and applicable fire safety regulations.

What is the difference between a 25KG and 50KG ABC trolley extinguisher?

Compared to a 25KG model, a 50KG extinguisher provides:Double the extinguishing agent capacityNearly double the discharge durationGreater firefighting enduranceBetter suitability for large-scale industrial hazards

Why choose a 50KG ABC trolley-mounted extinguisher?

A 50KG ABC extinguisher offers:High-capacity fire suppressionLong discharge durationExtended throw distanceIndustrial-grade reliabilityEnhanced protection for high-risk facilities

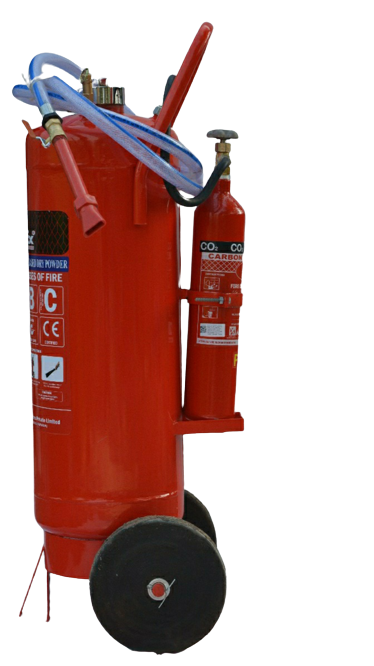

PALEX ABC Dry Powder 50KG Wheeled Fire Extinguisher

The PALEX ABC Dry Chemical Powder (Outer Cartridge) Wheeled Fire Extinguisher – 50 KG is a heavy-duty industrial fire extinguisher designed to combat Class A, Class B, Class C, and electrically initiated fires. It is charged with 50 kg of ABC Dry Chemical Powder (Mono Ammonium Phosphate) and pressurized using a 2 kg CO₂ outer gas cartridge, ensuring powerful and reliable fire suppression for large-scale fire emergencies.

Built using heavy-duty mild steel construction and mounted on a wheeled trolley, this extinguisher is specifically designed for industrial facilities, fuel storage areas, petrochemical plants, warehouses, airports, and other high-risk environments where large extinguishing capacities are required.

Manufactured in accordance with IS 16018:2012, the extinguisher provides extended discharge duration, long-range firefighting capability, and reliable performance in demanding operating conditions.

Speak to our fire safety expert to learn more about this product.

Request a Call-back

Description Specifications Technical Sheet FAQ

Product Description

1. General Data

Parameter	Details
Manufacturer	Palladium Safety Solutions Pvt. Ltd.
Trade Mark / Brand	"PALEX"
BIS Standard Code	IS 16018:2012
Type	Wheeled Fire Extinguisher – CO₂ Outer Cartridge Type

2. Performance Data

Parameter	Details
Capacity	50 kg
Fire Rating	20A, 233B
Fire Classes	Class A, B, C & Electrically Started Fires
Effective Discharge Time	Minimum 30 Seconds (Actual: Approx. 75 Seconds)
Discharge Range	Minimum 6 m (Actual: Approx. 7 m)
Percentage of Discharge	Minimum 85% (Actual: Approx. 92%)
Working Temperature	-30°C to +55°C
Service Pressure	15 Bar
Maximum Service Pressure	17 Bar

3. Material of Construction

Component	Specification
Body	Mild Steel Sheet (Max. 0.25% Carbon, 0.05% Phosphorus, 0.05% Sulphur)
Extinguishing Media	Mono Ammonium Phosphate (50% or 90%) conforming to IS 4308:2019
Neck Ring	MS Pipe (Filling Dia Ø 74 mm)
Cap	Brass
Discharge Hose	Rubber Braided EPDM Hose (Length: 4 m)
Discharge Nozzle	Brass
Syphon Tube (Inlet / Outlet)	MS Pipe
Gas Cartridge	2 kg CO₂ Outer Gas Cartridge
Trolley Wheel	Solid Rubber Wheel
Carrying Handle	MS Pipe

4. Quality Tests

Test	Specification
Hydrostatic Pressure Test	35 Bar
Burst Pressure Test (Body)	55 Bar
Burst Pressure Test (Discharge Hose)	Not Less Than 50 kgf/cm²

5. Dimensions

Parameter	Details
Diameter	300 mm ± 2 mm
Height	810 mm ± 2 mm (Without Wheel)
Cylinder Thickness	3 mm Thick Sheet
Full / Gross Weight	Approx. 84–86 kg

6. Anti-Corrosion Treatment

The extinguisher undergoes a 7-Tank Anti-Corrosion Treatment Process followed by an Epoxy Powder Coating.

Coating Specification

Minimum coating thickness: 50 microns
Provides superior protection against rust, corrosion, moisture, and harsh environmental conditions.

7. Miscellaneous

Parameter	Details
Inspection & Testing	As per Approved Quality Assurance Plan (QAP)
Finish	PO Red as per IS:5 (Shade 538)
Marking	As per IS 16018:2012
Approvals	BIS (Bureau of Indian Standards)
Maintenance, Care & Refilling	As per IS 16018:2012

8. Packing

Parameter	Details
Packing Type	Corrugated Paper or Suitable Jute Bags

9. In-Box Accessories

Item	Quantity
Fire Extinguisher	1 No.
Wheel Assembly	2 Wheels
CO₂ Gas Cartridge	1 No. (Mounted)

Key Benefits

High-Capacity Fire Suppression

50 kg ABC powder capacity.
Suitable for large-scale industrial fire emergencies.
Designed for high-risk environments.

Multi-Class Fire Protection

Effective against Class A fires involving solid combustible materials.
Suitable for Class B fires involving flammable liquids.
Effective against Class C fires involving flammable gases.
Safe for electrically initiated fires.

Extended Discharge Duration

Approximate discharge time of 75 seconds.
Provides prolonged firefighting capability during major incidents.

Long-Range Firefighting Capability

Approximate discharge range of 7 meters.
Allows operators to maintain a safer distance from fire hazards.

Wheeled Trolley Design

Easy movement across large facilities.
Fast deployment during emergencies.
Ideal for industrial and outdoor applications.

BIS Certified Construction

Manufactured in compliance with IS 16018:2012.
Approved by the Bureau of Indian Standards (BIS).

Applications

Oil & Gas Facilities

Fuel depots
LPG installations
Refineries
Petrochemical plants

Industrial Manufacturing Facilities

Factories
Production plants
Processing units
Assembly facilities

Warehouses and Logistics Hubs

Distribution centres
Storage facilities
Freight terminals

Aviation and Transportation Infrastructure

Airports
Aircraft hangars
Cargo terminals
Vehicle depots

Power and Utility Installations

Electrical substations
Generator rooms
Utility facilities

High-Risk Commercial Facilities

Shopping malls
Large commercial complexes
Industrial estates

Performance Data

Parameter	Details
Capacity	50 kg
Fire Rating	20A, 233B
Fire Classes	Class A, B, C & Electrically Started Fires
Effective Discharge Time	Minimum 30 Seconds (Actual: Approx. 75 Seconds)
Discharge Range	Minimum 6 m (Actual: Approx. 7 m)
Percentage of Discharge	Minimum 85% (Actual: Approx. 92%)
Working Temperature	-30°C to +55°C
Service Pressure	15 Bar
Maximum Service Pressure	17 Bar
